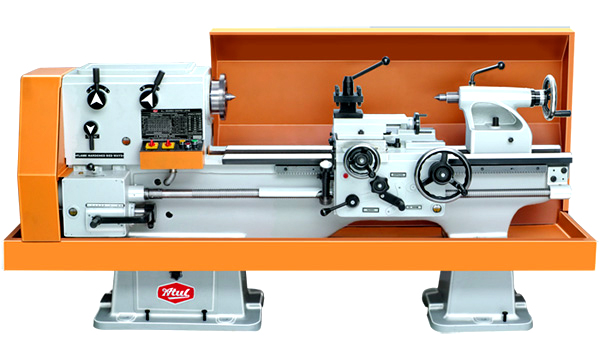

All Geared Center Lathe Download Catalog Download Catalog


DESCRIPTION AGL-1000 AGL-1500

AGL-2000

 AGL-2500 AGL-3000
Admit Between Centres
Hight of Centre over Flat Bed Ways
Maximum Swing over Bed
Maximum Swing over Cross Slide
Bed Tpe
Bed Width 		950 mm
235 mm
455 mm
255 mm
2V & 2 Flat
325		 1550 mm
235 mm
455 mm
255 mm
2V & 2 Flat
325		 1900 mm
235 mm
455 mm
255 mm
2V & 2 Flat
325		 2500 mm
235 mm
455 mm
255 mm
2V & 2 Flat
325		 3100 mm
235 mm
455 mm
255 mm
2V & 2 Flat
325
Head Stock
Spindle
Number of Spindle Speed
Range of Spindle Speed
Spindle Nose Dia
Spindle Bore
Spindle Morse Taper
Spindle Morse Taper with Adaptor 		A2-4 Type
12
40-1200 RPM
150 mm
52 mm
MT-6
MT-4		 A2-4 Type
12
40-1200 RPM
150 mm
52 mm
MT-6
MT-4		 A2-4 Type
12
40-1200 RPM
150 mm
52 mm
MT-6
MT-4		 A2-4 Type
12
40-1200 RPM
150 mm
52 mm
MT-6
MT-4		 A2-4 Type
12
40-1200 RPM
150 mm
52 mm
MT-6
MT-4
Carriage & Compound
Cross Slide Dimensions
Cross Slide Travel
Compound Slide Travel
Tool Section 		200 x 280 mm
250 mm
140 mm
25 x 25 mm 		200 x 280 mm
250 mm
140 mm
25 x 25 mm 		200 x 280 mm
250 mm
140 mm
25 x 25 mm 		200 x 280 mm
250 mm
140 mm
25 x 25 mm 		200 x 280 mm
250 mm
140 mm
25 x 25 mm
Tail Stock
Spindle Diameter
Spindle Travel
Spindle Morse Taper 		50 mm
180 mm
MT-4		 50 mm
180 mm
MT-4		 50 mm
180 mm
MT-4		 50 mm
180 mm
MT-4		 50 mm
180 mm
MT-4
Threads
Threads & Pitch Range in Metric
Threads & Pitch Range in Inch
Lead Screw Diameter
Lead Screw Threads
17 (0.5 TO 6 Pitch)
25 (4 TO 24 TPI)
38 mm
4TPI		 17 (0.5 TO 6 Pitch)
25 (4 TO 24 TPI)
38 mm
4TPI		 17 (0.5 TO 6 Pitch)
25 (4 TO 24 TPI)
38 mm
4TPI		 17 (0.5 TO 6 Pitch)
25 (4 TO 24 TPI)
38 mm
4TPI		 17 (0.5 TO 6 Pitch)
25 (4 TO 24 TPI)
38 mm
4TPI
Motor
Electric Motor (TWO SPEED)
Electric Motor RPM
V-Belt
2 HP - 3 HP
960 - 1440
A - 46		 2 HP - 3 HP
960 - 1440
A - 46		 2 HP - 3 HP
960 - 1440
A - 46		 2 HP - 3 HP
960 - 1440
A - 46		 2 HP - 3 HP
960 - 1440
A - 46

Standard Accessories Optional Accessories
  • Set of Change Gears,
  • Norton Gear Box,
  • V - Belts,
  • Centre Adaptor,
  • Dead Centres,
  • Chuck Plate,
  • Electricals,
  • Tool Post Key,
  • Carriage Tray,
  • Oil Can,
  • Plastic Can,
  • Screw Driver,
  • Spanners-3 Nos. Spare Parts Book.
  • Long Slide with Rear Tool Post,
  • Only Long Slide,
  • Taper Turning Attachment,
  • Steady Rest,
  • Follow Rest,
  • Revolving Centre,
  • Coolant Pump with Tank,
  • Machine Lamp,
  • Rear Splash Guard.
